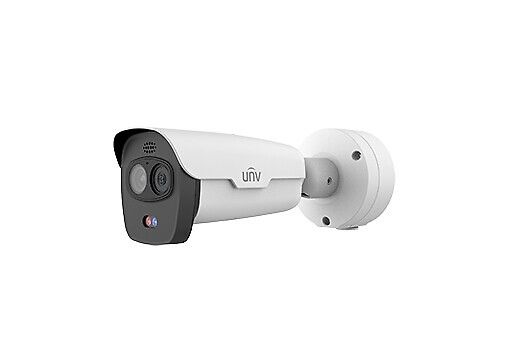

TIC2621SR-F3-4F4AC-VD UNV IP Thermal Camera
This product cannot be purchased online. Please contact sales.
| Technology | IP |
|---|---|
| Camera type | Thermal camera |
| Outdoor installation | Yes |
| Resolution | 4 |
| Focal length min | 4 |
| Focal length max | 4 |
| Lens type | Fixed |
| IR range | 50m |
| Analog output | No |
| Net weight (kg) | 1.85 |
| Width (mm) | 104 |
| Height (mm) | 116 |
| Length (Depth) (mm) | 354 |
| Ingress protection (IP) | IP66 |
| Impact protection (IK) | N/A |
Thermal cameras detect infrared radiation from wavelength 8μm to 14μm, and convert it into a thermo graphic images using differences in heat, making it visible regardless of lighting conditions. Thermal camera is widely used in applications such as perimeter security and over-heating detection.
Resolution 1280 × 720, 25 - frames/s thermal camera, resolution 2688× 1520 (4MP), 25 - frames/s optical camera
Optical camera: minimum illumination color 0.001lx/m/v 0.0005 lx/0 lx IR LED on
Optical camera: fixed 4mm lens, IR light approx 50m, 120dB WDR
Thermal imager: fixed lens 3.2mm, angle of view 57° × 42°
Visual alarm with blue and red lights, audio alarm, audio and I/O
12 VDC, PoE, IP67, operating temperature-40 °C to 65 °C
| Packaging 1 weight (kg) | 1.85 |
|---|
