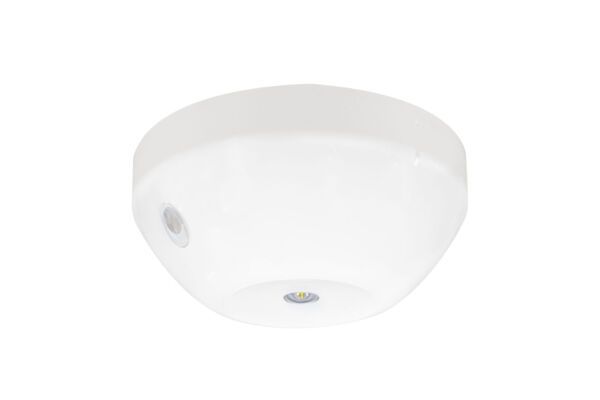

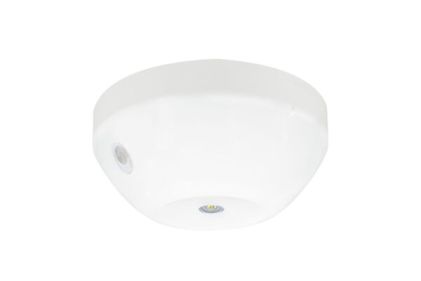

N68-O-3 Escape route luminaire with 3 h battery life
E-Number:
-
HVAC-Number:
-
Product code:
N68-O-3/14168
SKU:
8006342
This product cannot be purchased online. Please contact sales.
Specifications
| Lens type | Open area |
|---|---|
| Battery capacity (mAh) | 6000 |
| Battery type | NiMH |
| Battery type | NiMH |
| Operating temperature | -25°C — +40°C |
| Net weight (kg) | 0.172 |
| Width (mm) | 100 |
| Height (mm) | 48 |
| Length (Depth) (mm) | 48 |
| Colour | White |
| Enclosure | PC/ABS |
| Operating voltage (VDC) | 25 — 40 |
| Operating voltage (VAC) | 25 — 40 |
| Operating current, normal (mA) | 1.3 |
| Operating current, max (mA) | 14.2 |
| Ingress protection (IP) | IP21 |
| Impact protection (IK) | N/A |
| Mounting method | Ceiling mount, Surface mount, No tools required |
| Volume | 0.23 |
Product Description
The N68-O-3 is an escape route luminaire equipped with one high-powered LED. It is an addressable intelligent unit with an integrated NiMH battery which uses the latest long-life LED technology. It requires one conductor pair, which is connected to the round mounting base. After connecting the conductor pair, screw the luminaire onto the mounting base.
N68-O-3 is an escape route luminaire for open area
Use when Hi power mode is needed
Select when you need 3 h battery life
Packing info
| Packaging 1 height (mm) | 40 |
|---|---|
| Packaging 1 width (mm) | 100 |
| Packaging 1 length (depth) (mm) | 100 |
| Packaging 1 weight (kg) | 0.172 |
| Package size 1 | 5 |
| Height of a pallet | 1.1 |
| Package size1 Volume (litre) | 0.4 |
