N68-O Escape route luminaire for open areas
E-Number:
-
HVAC-Number:
-
Product code:
N68-O/14168
SKU:
8006340
This product cannot be purchased online. Please contact sales.
Specifications
| Lens type | Open area |
|---|---|
| Battery capacity (mAh) | 2000 |
| Battery type | NiMH |
| Battery type | NiMH |
| Operating temperature | -25°C — +40°C |
| Net weight (kg) | 0.12 |
| Width (mm) | 100 |
| Height (mm) | 15 |
| Length (Depth) (mm) | 100 |
| Colour | White |
| Operating voltage (VDC) | 24 — 40 |
| Operating voltage (VAC) | 24 — 40 |
| Operating current, normal (mA) | 1.3 |
| Operating current, max (mA) | 6.5 |
| Ingress protection (IP) | IP21, IP55 |
| Impact protection (IK) | N/A |
| Mounting method | Ceiling mount, Surface mount, No tools required |
| Volume | 0.45 |
Product Description

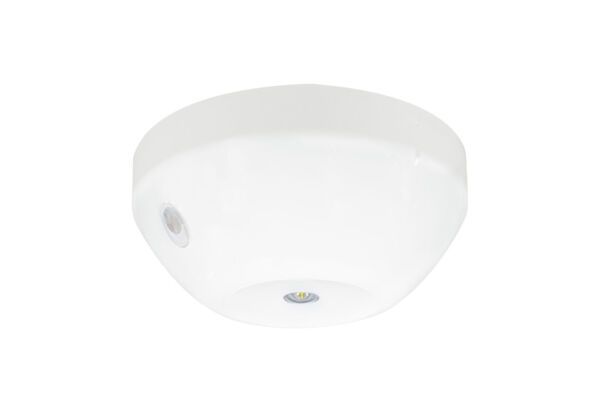

The N68 is an escape route luminaire equipped with one high-powered LED. It is an addressable intelligent unit with an integrated NiMH battery which uses the latest long-life LED technology. It requires one conductor pair, which is connected to the round mounting base. After connecting the conductor pair, screw the luminaire onto the mounting base.
Battery included.
Packing info
| Packaging 1 height (mm) | 30 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 length (depth) (mm) | 120 |
| Packaging 1 weight (kg) | 0.1 |
| Package size 1 | 1 |
| Height of a pallet | 1.2 |
| Package size1 Volume (litre) | 0.432 |
