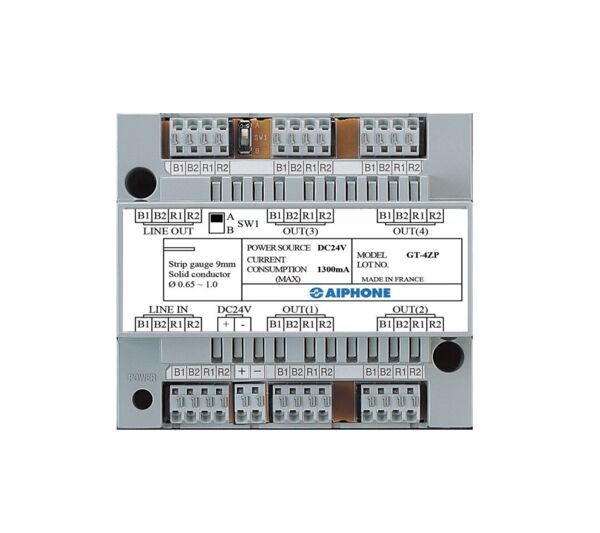

GT-4ZP 4-way video and power distribution adaptor
E-Number:
-
HVAC-Number:
-
Product code:
GT-4ZP
SKU:
8006163
This product cannot be purchased online. Please contact sales.
Specifications
| Net weight (kg) | 0.277 |
|---|
Product Description
Aiphone GT series 4-way video and power distribution adaptor, which can distribute video bus and operating voltage to a maximum of four GT-1C7W-L master stations.
1 Video in-input (for trunk cable).
1 voltage input 24 VDC (PS-2420DM).
1 Video out-output (for trunk cable).
4 x Video out-outputs (for master stations).
Install on a DIN rail.
Unit width 122.5 mm (7 modules).
Packing info
| Packaging 1 height (mm) | 85 |
|---|---|
| Packaging 1 width (mm) | 135 |
| Packaging 1 length (depth) (mm) | 165 |
| Packaging 1 weight (kg) | 0.277 |
| Height of a pallet | 0.6 |
| Type metadata name here. | 99999 |
