SIGNO 40 STD SIGNO SEOS STD reader
E-Number:
-
HVAC-Number:
-
Product code:
40TKS-00-000BK6
SKU:
8006073
This product cannot be purchased online. Please contact sales.
Specifications
| Reader technology | SEOS, Indala PROX |
|---|---|
| Protocol | WIEGAND, OSDP |
| Keypad | No |
| Mobile ready | Yes |
| Net weight (kg) | 0.12 |
| Width (mm) | 80 |
| Height (mm) | 121.5 |
| Length (Depth) (mm) | 19.5 |
| Operating voltage (VDC) | 12 |
| Operating current, normal (mA) | 75 |
| Operating current, max (mA) | 250 |
| Ingress protection (IP) | IP65 |
Product Description

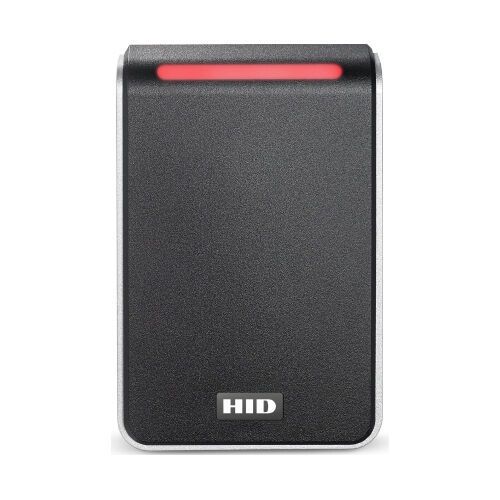

Highest security HID SIGNO SEOS STD reader.
Reads high security SEOS credentials.
Reads INDALA PROX and iClass SE credentials.
BLE and NFC mobile identification
Automatic calibration according to mounting surface.
The connector is flush with the backplate and allows the reader to be mounted without a mounting plate.
Packing info
| Packaging 1 height (mm) | 45 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 length (depth) (mm) | 180 |
| Packaging 1 weight (kg) | 0.18 |
| Height of a pallet | 0.6 |
| Type metadata name here. | 125 |
