HEDSAM-NODE Hedsam X electronic card
E-Number:
-
HVAC-Number:
-
Product code:
HEDSAM-NODE/51150
SKU:
8005525
This product cannot be purchased online. Please contact sales.
Specifications
| External interfaces | LAN, RS485 |
|---|---|
| Humidity | Max 95% RH, non condensing |
| Net weight (kg) | 0.06 |
| Width (mm) | 130 |
| Height (mm) | 26 |
| Length (Depth) (mm) | 69 |
| Operating voltage (VDC) | 14-40VDC, 24VDC recommended |
| Operating current, normal (mA) | 55 |
| Operating current, max (mA) | 70 |
Product Description

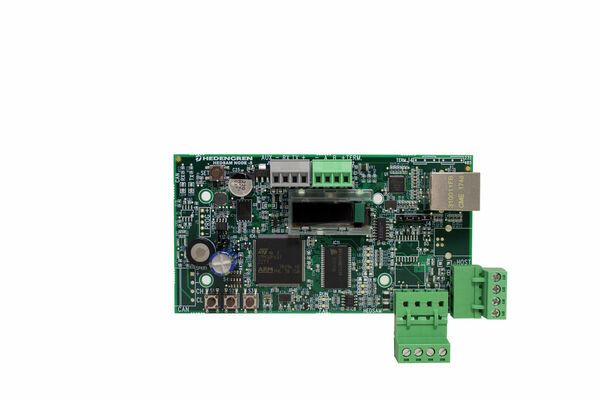

Hedsam X node card
A Hedsam X node card for door cards and IN12 and OUT12 cards.
You can connect a maximum of 8 door cards, and 4 IN12 and 4 OUT12 cards.
Ethernet interface 10/100
Packing info
| Packaging 1 height (mm) | 35 |
|---|---|
| Packaging 1 width (mm) | 150 |
| Packaging 1 length (depth) (mm) | 175 |
| Packaging 1 weight (kg) | 0.158 |
| Height of a pallet | 1.1 |
