NEPTO-3K/N Emergency lighting panel Nepto-3K
E-Number:
-
HVAC-Number:
-
Product code:
NEPTO-3K/N
SKU:
8004665
This product cannot be purchased online. Please contact sales.
Specifications
| Battery type | 2 x 7 Ah / 2 x 20 Ah |
|---|---|
| Number of loops | 1 |
| Centers on the same buss | 12 |
| Battery capacity (Ah) | 20 |
| External connections | 8 inputs / 8 outputs (NC/NO) |
| Width (mm) | 385 |
| Height (mm) | 585 |
| Length (Depth) (mm) | 102 |
| Operating current, normal (mA) | 60 |
Product Description
A prime example of Finnish product development, a third generation emergency lighting panel manufactured in Finland. A quick deployment with the OLED display and control buttons, which also performs automatic address line analysis. Nepto-3K from 127 to 3000 addresses.
Quick deployment with the OLED display and control buttons
The panel includes 1 integrated address line with 127 addresses, which can be expanded to a total of 254 addresses with an additional line card (NEPTO-LOOP)
You can interconnect a maximum of 12 panels in the same address line

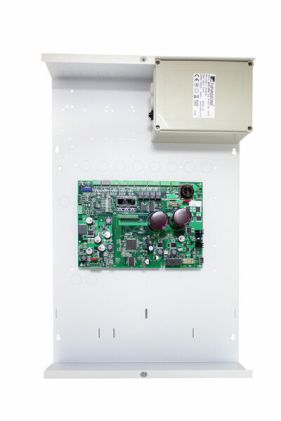

Includes an enclosure, motherboard and transformer
