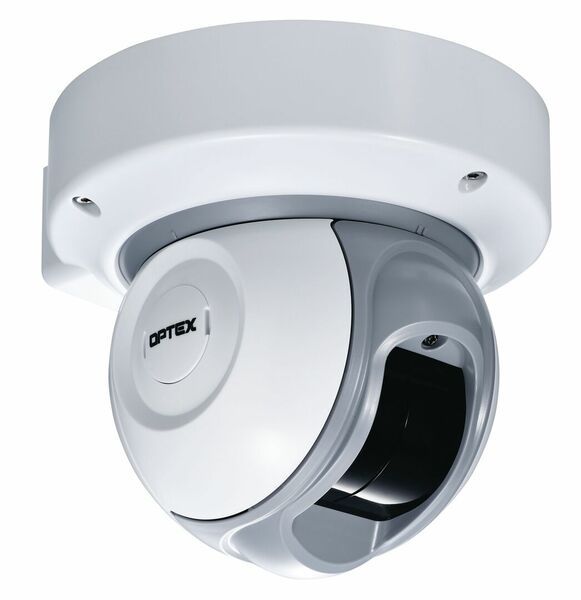

RLS-2020I Indoor laser detector
E-Number:
-
HVAC-Number:
-
Product code:
50066 RLS-2020I
SKU:
8003420
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | Detection range |
|---|---|
| Sensorityyppi | Laser |
| Peittämissuoja | yes |
| Jalusta | Included |
| Net weight (kg) | 1.44 |
| Width (mm) | 160 |
| Height (mm) | 146 |
| Length (Depth) (mm) | 160 |
| Colour | White |
| Operating voltage (VDC) | 10,5 - 30 |
| Operating current, max (mA) | 500 |
| Ingress protection (IP) | IP20 |
| Operating temperature | -40 ... +50 °C |
Product Description
Laser detector
Suitable for indoor use
Detection range 20 x 20 m
Wall or ceiling mounting
Compatible with the CLC/TS 50131-2-11:2017 Level 3 requirements
Packing info
| Packaging 1 height (mm) | 178 |
|---|---|
| Packaging 1 width (mm) | 205 |
| Packaging 1 length (depth) (mm) | 225 |
| Height of a pallet | 1 |
| Type metadata name here. | 99999 |
