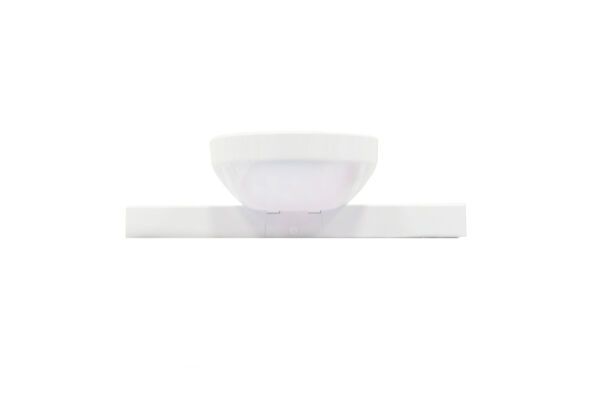

N20-X Frame for adaptive 20 m exit sign
E-Number:
-
HVAC-Number:
-
Product code:
N20-X/14166
SKU:
8002976
This product cannot be purchased online. Please contact sales.
Specifications
| Viewing distance (m) | 20 |
|---|---|
| Battery capacity (mAh) | 1900 |
| Battery type | NiMH |
| Battery type | LiPO |
| Net weight (kg) | 0.44 |
| Width (mm) | 202 |
| Height (mm) | 175 |
| Length (Depth) (mm) | 70 |
| Colour | White |
| Operating voltage (VDC) | 24-40 |
| Operating voltage (VAC) | 24-40 |
| Operating current, normal (mA) | 1.3 |
| Operating current, max (mA) | 13.3 |
| Ingress protection (IP) | IP21, IP41 |
| Mounting method | Ceiling mount, Wall mount, Recessed/flush mount, Surface mount |
Product Description
A frame for the unique adaptive exit sign which guides people out of the building through the safest escape route. The adaptive exit sign displays the normal green exit image when the escape route is safe and a red cross over the image when the escape route is compromised.
A frame for adaptive (red X) 20 m exit sign
Made of aluminum/plastic
Viewing distance 20 m
Operating time 1 h/3 h
IP41
Packing info
| Packaging 1 height (mm) | 63 |
|---|---|
| Packaging 1 width (mm) | 110 |
| Packaging 1 length (depth) (mm) | 225 |
| Height of a pallet | 1.1 |
