JP-8Z Distribution adaptor for video master stations
E-Number:
-
HVAC-Number:
-
Product code:
JP-8Z
SKU:
8002679
This product cannot be purchased online. Please contact sales.
Specifications
| Net weight (kg) | 0.272 |
|---|---|
| Volume | 0.818 |
Product Description

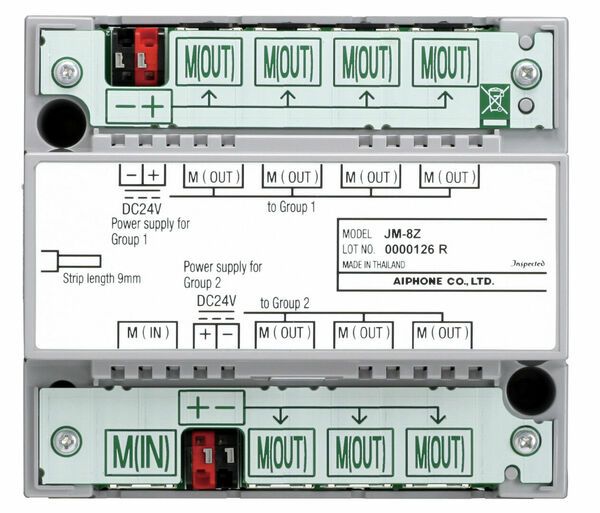

Connect to the JP-4MED master station and split at the junction for the JP-4HD sub stations. The number of required power supplies (1-2 pcs) depends on the system configuration.
1 video input, 7 video outputs for the sub stations.
Install on a DIN rail.
RJ45 connection between the master and sub stations.
Operating voltage 24VDC 2A (1-2 PS-2420DM power supplies).
Power supply: group 1 (sub stations 1-4).
Power supply: group 2 (sub stations 5-7).
Packing info
| Packaging 1 height (mm) | 125 |
|---|---|
| Packaging 1 width (mm) | 115 |
| Packaging 1 length (depth) (mm) | 80 |
| Packaging 1 weight (kg) | 0.27 |
| Height of a pallet | 0.2 |
| Package size1 Volume (litre) | 1.15 |
| Type metadata name here. | 99999 |
