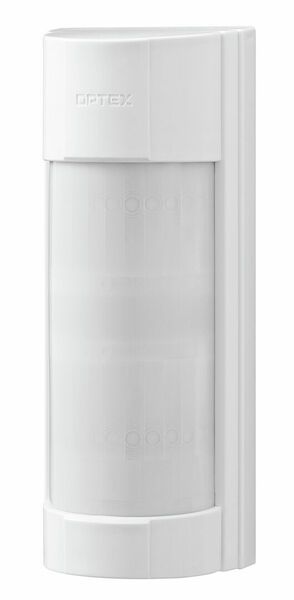

VXI-AM Outdoor PIR detector with anti-masking
E-Number:
-
HVAC-Number:
-
Product code:
08851 VXI-AM
SKU:
8002517
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 12 x 12 m |
|---|---|
| Sensorityyppi | 2 x PIR |
| Peittämissuoja | Yes |
| Alarm output | NC / NO, 0.1 A 28 V DC |
| Net weight (kg) | 0.514 |
| Width (mm) | 71 |
| Height (mm) | 182 |
| Length (Depth) (mm) | 65 |
| Colour | White |
| Operating voltage (VDC) | 9.5 - 18 |
| Operating current, max (mA) | 24 |
| Ingress protection (IP) | IP55 |
| Operating temperature | -30°C...+60°C |
Product Description
A passive infrared detector with anti-masking for outdoor installations. The detector is used outdoors in close vicinity of the buildings to sound an alarm as early as possible in the event of a break-in.
Detection range 12 x 12 m
With two sensors
An opening or a closing contact
Versatile control over the detection area
Packing info
| Height of a pallet | 0.5 |
|---|---|
| Type metadata name here. | 99999 |
Documents and links
