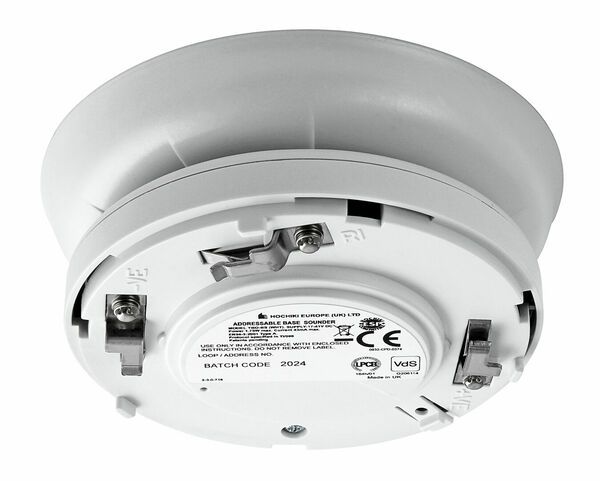

YBO-BS/WHT Addressable base sounder
E-Number:
-
HVAC-Number:
-
Product code:
YBO-BS/WHT
SKU:
8001689
This product cannot be purchased online. Please contact sales.
Specifications
| Äänen voimakkuus | 50 — 98dB(A)@1m |
|---|---|
| Detector type | Point detector |
| Number of signal types | 51 |
| Net weight (kg) | 0.112 |
| Width (mm) | 113 |
| Height (mm) | 51 |
| Length (Depth) (mm) | 51 |
| Colour | White |
| Approvals | EN54-3, 0832-CPD-0374 |
| Operating voltage (VDC) | 17 — 41 |
| Operating current, normal (mA) | 0.2 |
| Operating current, max (mA) | 16 |
| Ingress protection (IP) | IP21 |
| Impact protection (IK) | N/A |
| Operating temperature | -10°C — +50°C |
| Mounting method | Ceiling mount |
Product Description
An addressable base sounder for local alarms
7 different alarm tones (the tones are pre-selected, see the instructions)
Different alarm tones for alarm and pre-alarm
Can be grouped
Only for addressable sensors
Mounting base (optional)
60 base sounders can ring simultaneously in the same loop, provided that the sound level is 85 dB
Packing info
| Packaging 1 height (mm) | 116 |
|---|---|
| Packaging 1 width (mm) | 46 |
| Packaging 1 length (depth) (mm) | 117 |
| Height of a pallet | 1.2 |
| Type metadata name here. | 1632 |
