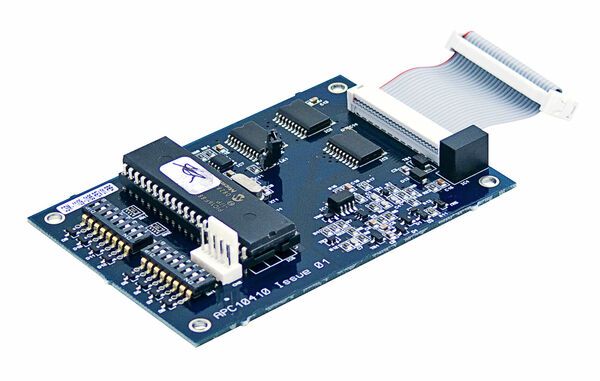

APIC/ESP-CARD Firelink interface card for addressable loop
E-Number:
-
HVAC-Number:
-
Product code:
FL-APIC
SKU:
8001121
This product cannot be purchased online. Please contact sales.
Specifications
| Operating voltage (VDC) | 17-41 |
|---|---|
| Operating current, normal (mA) | 0.9 |
| Net weight (kg) | 0.16 |
| Width (mm) | 70 |
| Height (mm) | 100 |
| Length (Depth) (mm) | 25 |
Product Description
An interface card for Firelink air sampling detectors in the addressable loop. Use 1 card per device. In larger systems, you can use a Firelink-400CM detector with a command module (available on order only). It is connected to the loop with an APIC interface card and the other Firelink detectors are connected to the Firelink-400CM device. This helps to reduce the number of interface cards.
Enables address-specific fire alarm, pre-alarm, fault and service notifications.
Packing info
| Packaging 1 height (mm) | 12 |
|---|---|
| Packaging 1 width (mm) | 75 |
| Packaging 1 length (depth) (mm) | 110 |
| Height of a pallet | 0.5 |
| Type metadata name here. | 99999 |
