SIP-404 Outdoor motion detector
E-Number:
-
HVAC-Number:
-
Product code:
08562 SIP-404
SKU:
8001080
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 40 x 4 m |
|---|---|
| Sensorityyppi | 3 x PIR |
| Peittämissuoja | yes |
| Jalusta | Inluded |
| Net weight (kg) | 1.47 |
| Width (mm) | 102 |
| Height (mm) | 227 |
| Length (Depth) (mm) | 266 |
| Operating voltage (VDC) | 11-16 |
| Operating voltage (VAC) | 22-26 |
| Operating current, max (mA) | 35 |
| Ingress protection (IP) | IP55, IP65 |
| Operating temperature | -25 ... +60 C without a heater |
Product Description

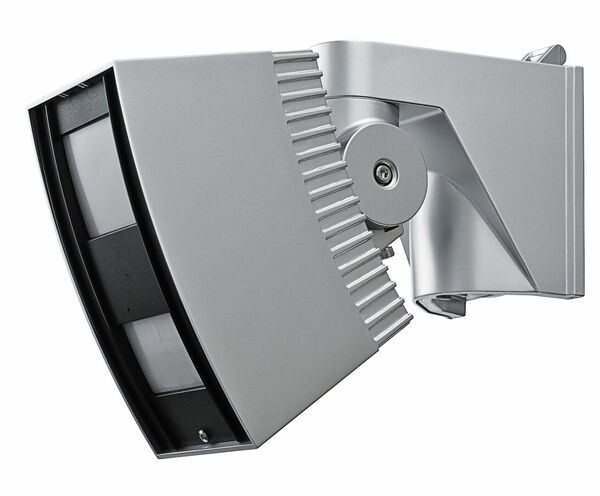

Passive infrared detector for outdoors.
Detection range 40 x 4 m
Three dual pyro-elements with patented Double Conductive Shielding, anti-masking functionality
An anti-vandalism functionality with accelerometer
Adjustable detection area and sensitivity
Separate opening and closing contacts for alarm
Packing info
| Height of a pallet | 0.4 |
|---|---|
| Type metadata name here. | 99999 |
Documents and links
