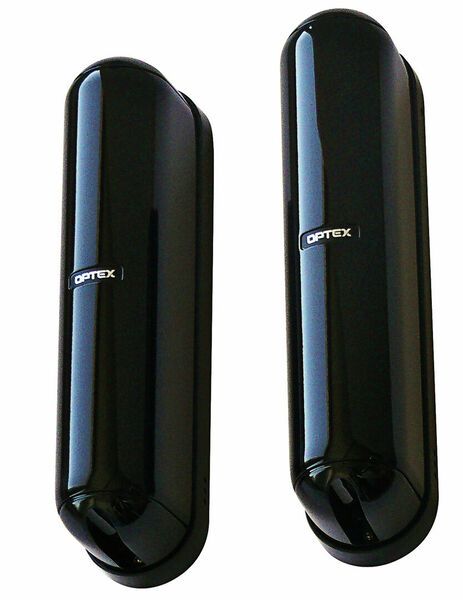

BX-100PLUS Beam detector
E-Number:
-
HVAC-Number:
-
Product code:
08212 BX-100PLUS
SKU:
8000178
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 40 m beam |
|---|---|
| Sensorityyppi | 2 x active IR |
| Net weight (kg) | 0.5 |
| Width (mm) | 52 |
| Height (mm) | 231 |
| Length (Depth) (mm) | 61 |
| Operating voltage (VDC) | 10.5-28 |
| Operating current, normal (mA) | 55 |
| Operating current, max (mA) | 75 |
| Ingress protection (IP) | IP54 |
| Operating temperature | -35 ºC...+55ºC |
Product Description
Infrared beam detector
Outdoor coverage 40 m
Small-sized
Two beams
Packing info
| Packaging 1 height (mm) | 73 |
|---|---|
| Packaging 1 width (mm) | 112 |
| Packaging 1 length (depth) (mm) | 280 |
| Height of a pallet | 0.5 |
| Type metadata name here. | 99999 |
