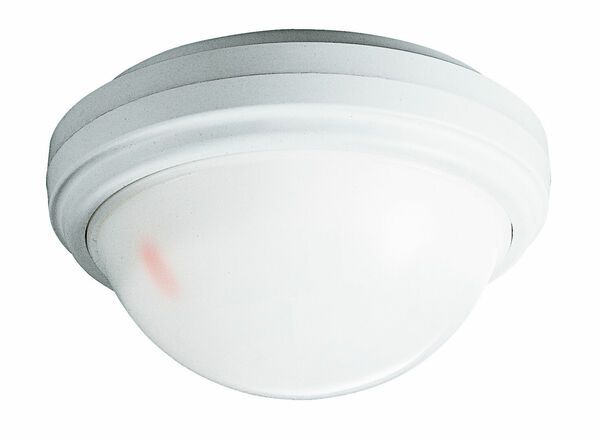

SX-360Z Ceiling-mounted motion detector
E-Number:
-
HVAC-Number:
-
Product code:
08063 SX-360Z
SKU:
8000039
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 18 m diameter when the installation height is 3.5 - 5 m |
|---|---|
| Sensorityyppi | 3 x PIR |
| Net weight (kg) | 0.32 |
| Length (Depth) (mm) | 73 |
| Diameter (mm) | 128 |
| Operating voltage (VDC) | 6 - 18 |
| Operating current, normal (mA) | 13 |
| Operating current, max (mA) | 18 |
| Operating temperature | -20 ... +50 C |
Product Description
Passive infrared detector for the ceiling.
18 m circular detection area
Includes a zoom mechanism, which allows a flexible installation height between 2.4 and 5 m
Packing info
| Packaging 1 height (mm) | 137 |
|---|---|
| Packaging 1 width (mm) | 76 |
| Packaging 1 length (depth) (mm) | 136 |
| Height of a pallet | 0.7 |
