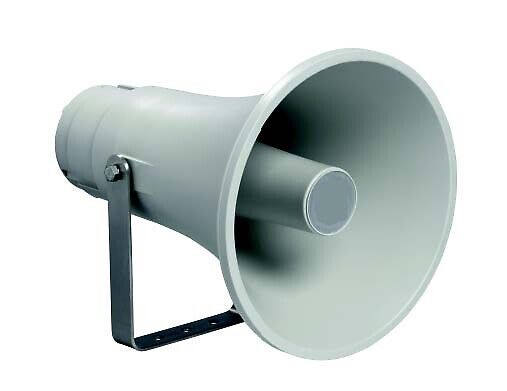

4E-H15-ENCT Horn loudspeaker 15w
E-Number:
-
HVAC-Number:
-
Product code:
4E-H15-ENCT
SKU:
2401082
This product cannot be purchased online. Please contact sales.
Specifications
| Ingress protection (IP) | IP66 |
|---|---|
| Mounting method | Ceiling mount, Wall mount |
| Net weight (kg) | 2.08 |
| Length (Depth) (mm) | 321 |
| Diameter (mm) | 209 |
| Enclosure | Impact-resistant ABS housing (UL94V0) |
Product Description
The EN 54-24 certified horn speaker, provide a high sound pressure and sustained weather resistance, ideal for industrial applications. IP66 ensures reliability even under difficult conditions.The impact-resistant ABS housing (UL94V0) guarantees long lasting stability. For our international customers we offer a 70-Volt adjustment. This type is equipped with a capacitor 2.2 μF.
Power: 15/7,5/3,75/1,9 Watt
DC-blocking capacitor: 2,2uF
Frequency response : 300 - 13.800 Hz.
SPL 1Watt/1mtr. : 108,5 dB
Dispersion 1kHz. : 110°
Certified : EN 54-24:2008
